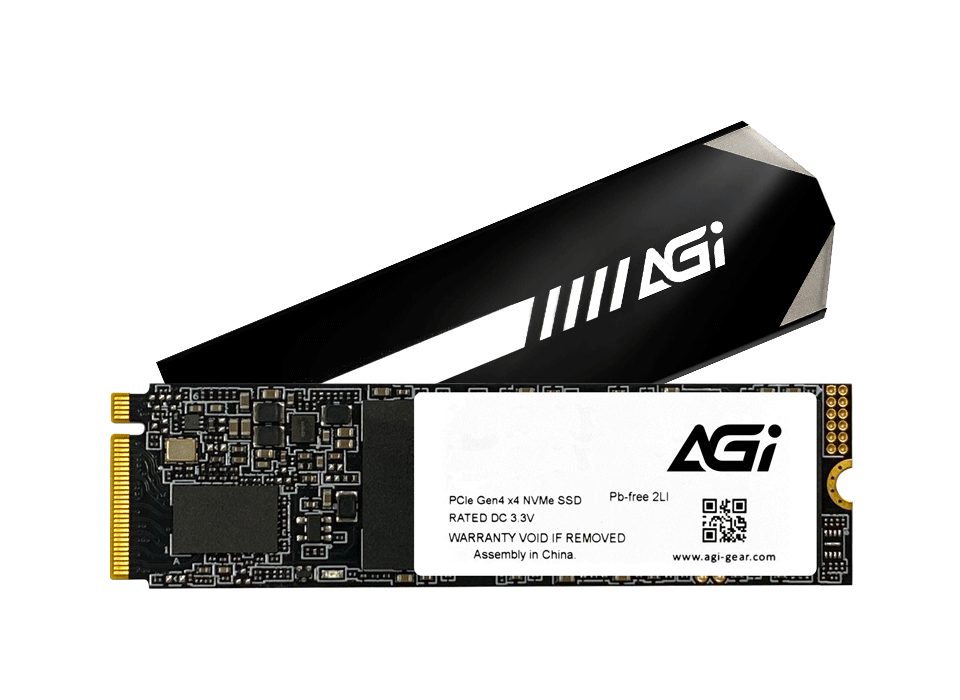

New spec Gen4x4
Speed up to 5200 MB/s, boost your computer's R/W speed
![](https://agi-gear.com/wp-content/uploads/2022/12/960-700-818-.png)
Key Features

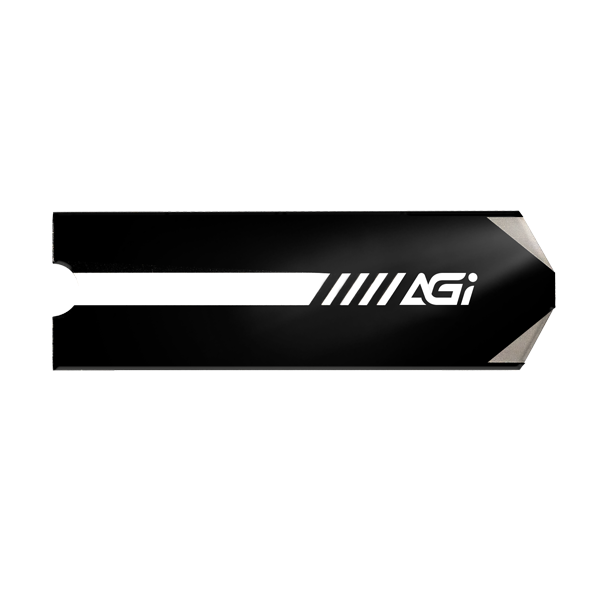

➠ Graphene heat sink
➠ Capacity up to 2TB
➠ Support NVMe1.4
➠ Speed up to 5200MB/s
![](https://agi-gear.com/wp-content/uploads/2021/12/552x200-1.png)
![](https://agi-gear.com/wp-content/uploads/2021/12/1001-1_08.png)
![](https://agi-gear.com/wp-content/uploads/2022/12/960x700-818-2.png)
![](https://agi-gear.com/wp-content/uploads/2021/09/146-55_2.png)
PCIE Gen 4 x 4
New generation transmission speed
Where to use
The PCIE Gen4 SSD can be assembled in the Gen4 interface of a new generation computer, and playstation 5
![](https://agi-gear.com/wp-content/uploads/2022/12/PCIe_.jpg)
![](https://agi-gear.com/wp-content/uploads/2022/12/PCIe_all-1.jpg)
![](https://agi-gear.com/wp-content/uploads/2022/12/PCIe_1-all-.jpg)
![](https://agi-gear.com/wp-content/uploads/2021/09/1920x700-3-1.png)
Speed Performance
"Performance may base on SSD capacity, hardware test platform, test software, operating system and other variables"
Buy & Support
Our Insist
AGI used the most trusted flash memory to produce our high quality, efficiency, and stability products.
more![](https://agi-gear.com/wp-content/uploads/2021/09/648x418-1-2-N.jpg)
![](https://agi-gear.com/wp-content/uploads/2021/09/648x418-1-3-N.jpg)

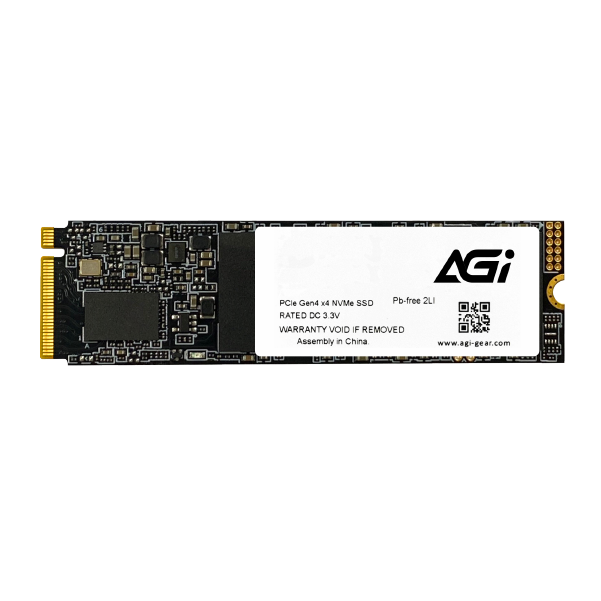

Specifications
Capacity
512GB / 1TB / 2TB
tb
3D NAND
Form Factor
PCIe Gen 4 x 4
Interface
M.2 2280
Dimensions(L x W x H) with heat sink
80 x 22 x 5.4mm
Dimensions(L x W x H) without heat sink
80 x 22 x 2.1mm
Read/Write(Max)*
5200 / 4700 MB/s, *This is internal test data, and actual read and write speeds may vary depending on system hardware, testing software, operating system, and capacity.
Shock Resistance
1500G/0.5ms
Operating Temperature
0°C-70°C
Storage Temperature
-40°C-85°C
TBW
1200TB(2TB)
MTBF
1,600,000 hours
Certifications
CE, FCC, BSMI, RoHS
Warranty
3 years
